Incident Notification
Use this section to create your incident notification workflow.
Emails

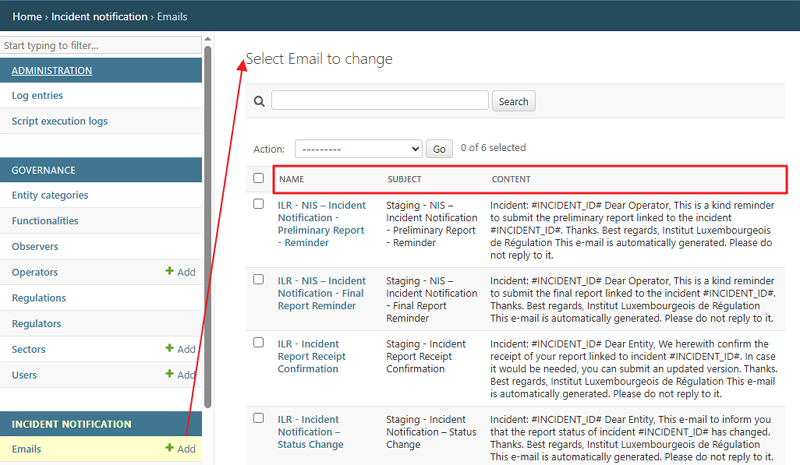

By clicking the Emails link in the Incident Notification section, you can view the email templates that have been set up in your SERIMA instance. These email templates are available on the Select Email to Change screen and are used during the incident notification workflow.
The email templates are shown as a list in a table with the columns Name, Subject, and Content.

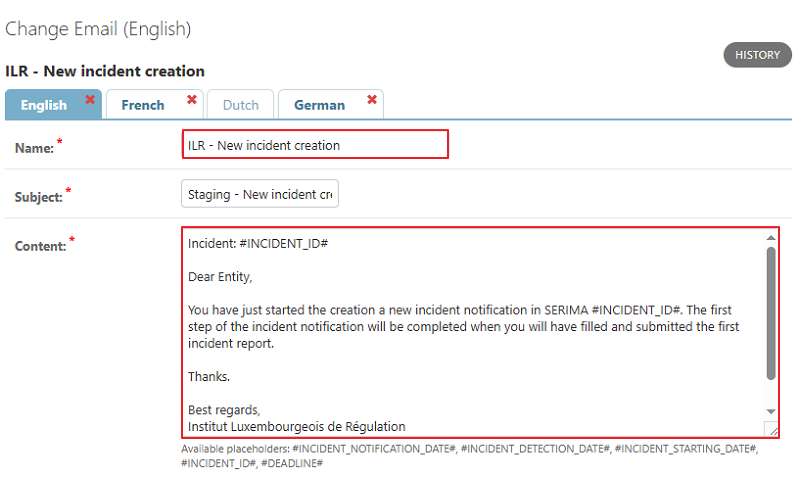

Click the name of the template to see its content. The screenshot below shows an example of the New Incident Notification template.
You can see the Name, the Subject, and the Content of the email:

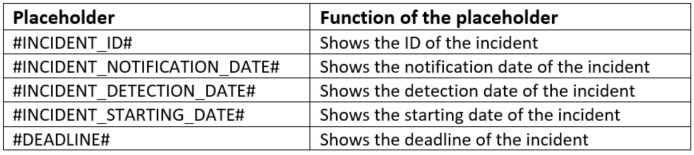

Beneath the Content area, you can see the usable placeholders you can use to replace the relevant information in your template.
These placeholders are automatically populated and replace the relevant information whenever the email is sent. You can set up your template emails in four languages: English, French, Dutch, and German. English is the platform’s default language, so email templates are typically created in English and translated into other languages when needed.
You can switch between these four languages on the platform using the language selector dropdown in the top-right corner of the application. The default language is English. If you switch to another language, but the email template has not been translated into that language, the platform will fall back to English and display the English version of the email.
Impact

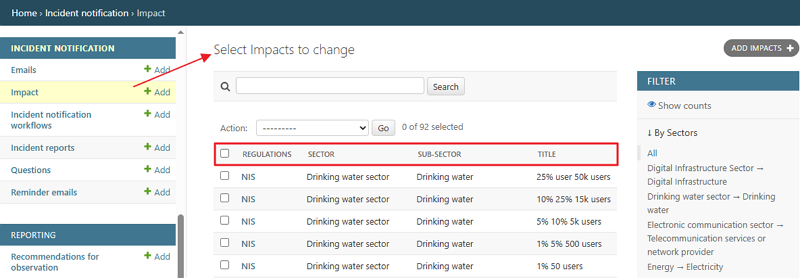

Click the Impact link to go to the Select Impacts to change screen. On this screen, you can check which impacts are defined in your system. On the Select Impacts to change screen, you can see the impacts list in a table format with the columns Regulations, Sector, Sub-sector, and Title.
Depending on your needs (such as the regulations you are subject to or the sectors you operate in), you can set up different impacts. As shown in the screenshot above, you can configure impacts for the same regulation, sector, and sub-sector, with variations based on the number of users.

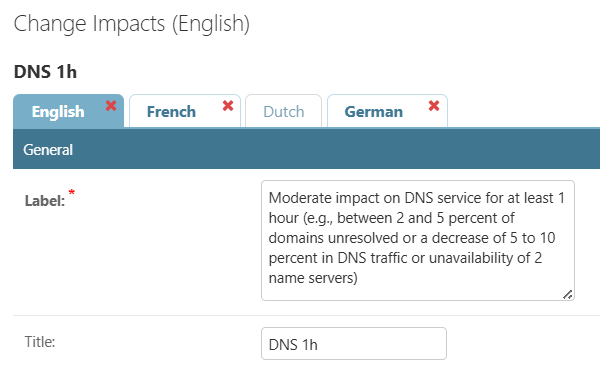

You can set up an impact named DNS 1h for a one-hour DNS service outage and add the following description (as can be seen in the screenshot below): Moderate impact on DNS service for at least 1 hour (e.g., between 2 and 5 percent of domains unresolved or a decrease of 5 to 10 percent in DNS traffic or unavailability of 2 name servers).
If you have many impacts, you can use the Search and Filter features to find specific ones. In the Filter section on the right side of the screen, you can narrow down your impacts by sector or legal basis.
How to export selected impacts?

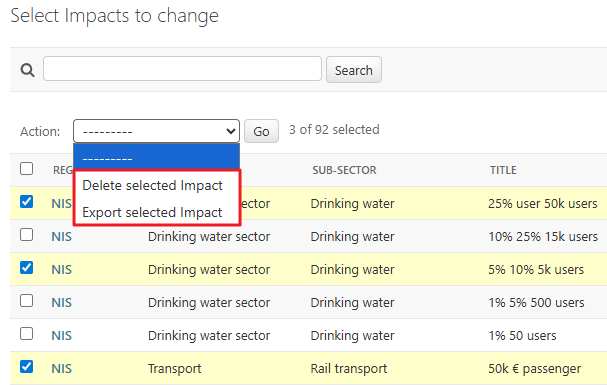

Select the impact or impacts you want to export by checking the box next to each relevant impact. If you want to select all impacts at once, use the first checkbox on the left of the Regulations column header.
Then, open the Action dropdown menu, choose Export Selected Impact, and click Go. The selected impacts will be exported to a CSV file.
.
How to delete selected impacts?
Select the impact or impacts you want to delete by checking the box next to each relevant impact. Then, open the Action dropdown menu, choose Delete Selected Impact, and click Go. The selected impacts will be deleted.
Incident notification workflow
The incident notification workflow is the most important part of the application. It allows you to set up the environment (entities, observers, operators, regulators, and more) and define the building blocks of a workflow (emails, impacts, reports, questions, and more) to create a mechanism for managing reported incidents and maintaining communication among all system stakeholders. This mechanism is the heart of the process and is called the incident notification workflow.
Based on the above, you can create a workflow only after the required components (essentially the entire system) have been set up, including regulators, operators, and email templates.

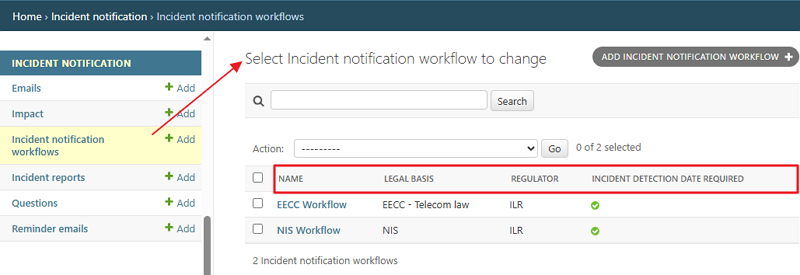

Click the Incident notification workflows link to go to the Select Incident notification workflow to change screen. On this screen, you can check what kind of incident notification workflows are defined in your system.
Click the name of the workflow you want to open. The Change Incident Notification Workflow screen is complex and contains several sections.

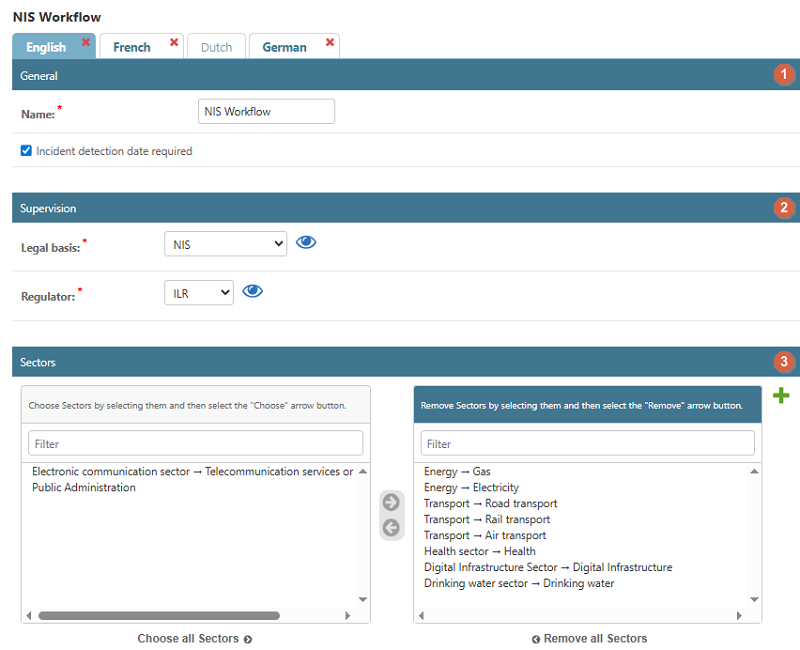

At the top is the General section, which displays the workflow name. Below it is the Supervision section, showing the Legal basis (regulation) and the Regulator (in this case, ILR). The third section (Sectors) lists the sectors selected for this workflow.
When you set up a new workflow, you can select a different regulation (Legal basis) or regulator using the dropdown menus, provided these options have already been configured in your SERIMA instance.

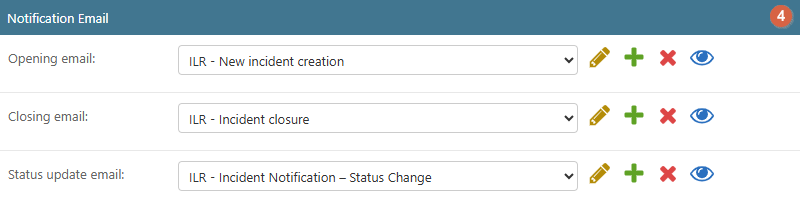

The fourth section is Notification Email. This section contains the email templates you set up on the Select Email to Change screen (Incident Notification -> Emails). In a typical workflow, there are at least three email templates you should use: an opening email, a status update email, and a closing email.

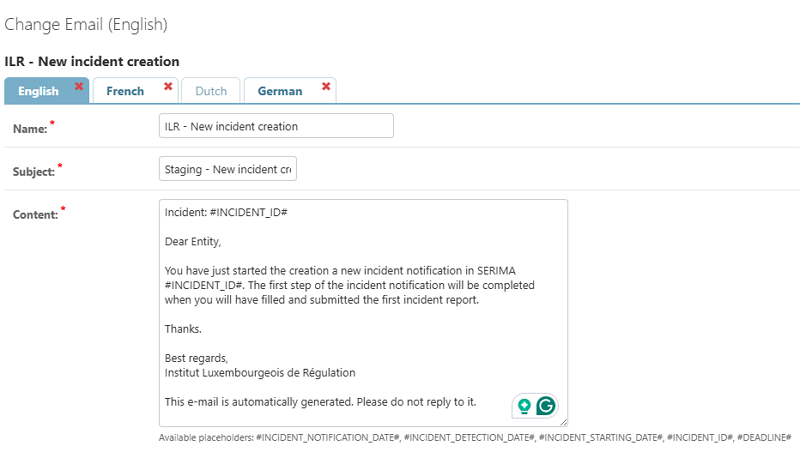

When an operator reports an incident, they will receive an opening email confirming that the incident has been successfully reported. An example template for an Opening email can be seen below:

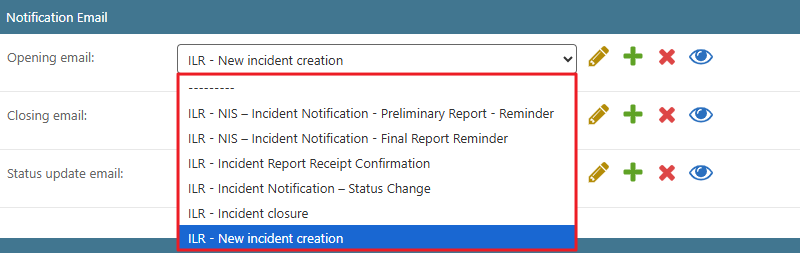

When the status of the incident changes, the Status update email is sent out. When the incident is closed, the Closing email is used. When you set up a new workflow (or change an existing one), use the dropdown menus next to the email templates and choose a different email template –if needed:

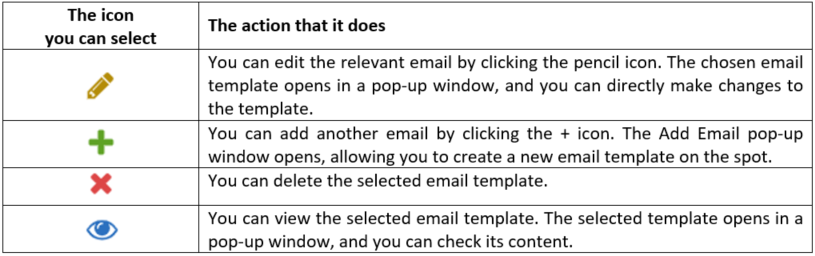

Next to the dropdown menus, you can see the following icons:
The fifth section is called Incident Reports. Here you can view the incident reports set up in the system.
Please note that you must set up incident reports first (using Incident Notification -> Incident Reports) before selecting the ones you want to use in the workflows.

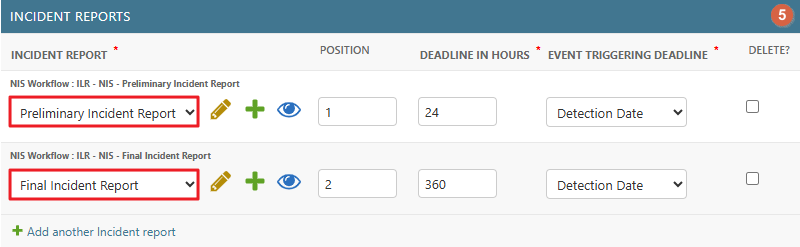

The screenshot below shows an example of a workflow: the NIS workflow uses two reports (the Preliminary Incident Report and the Final Incident Report).
In the Position field, a smaller number indicates that the step occurs before a larger number. This feature is especially useful when you have multiple reports, as it allows you to define the order in which reports should be used.
The Deadline in Hours field specifies, in hours, the latest time by which the report should be sent after the Event Triggering Deadline. This is the timeframe within which the Operator User must fill out the preliminary notification.
The Event Triggering Deadline can have different values: None, Notification Date, Detection Date, or Previous Workflow. It defines the reference point from which the workflow element should be triggered.
For example, as shown in the screenshot above, the Preliminary Incident Report should be activated no later than 24 hours after the Detection Date. As also shown in the screenshot above, once the Preliminary Incident Report has been created, the Final Incident Report must be completed no later than 360 hours afterward.
Incident reports

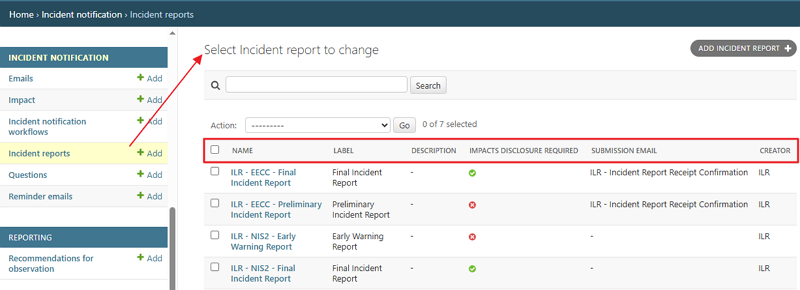

Click the Incident reports link to go to the Select Incident report to change screen. On this screen, you can check what kind of incident reports are defined in your system. The reports are in a table format with the following columns: Name, Label, Description, Impacts Disclosure Required, Submission Email, and Creator.
Reports are the building blocks of a workflow; they are the steps you create to assemble a process called a workflow. You can configure different workflows to best suit your needs. You can create new reports either by clicking the Add link in the Incident Notification section on the left, or by clicking the Add Notification Report button in the top-right corner.
How to delete a selected incident report?

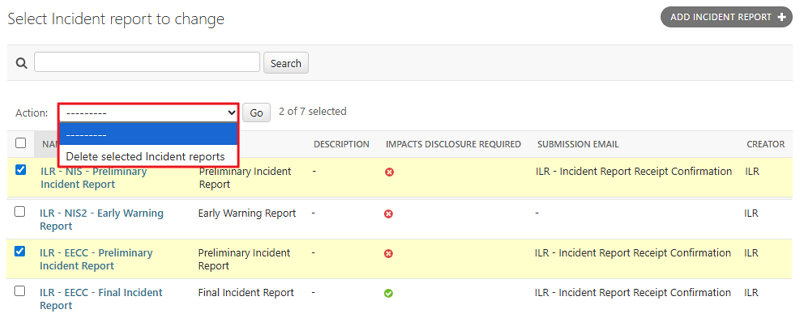

Select the incident report or reports you want to delete by checking the box next to each relevant report. Then, open the Action dropdown menu, choose Delete Selected Incident Reports, and click Go. The selected reports will be deleted.
Fig. 12 How to check the details of a report?

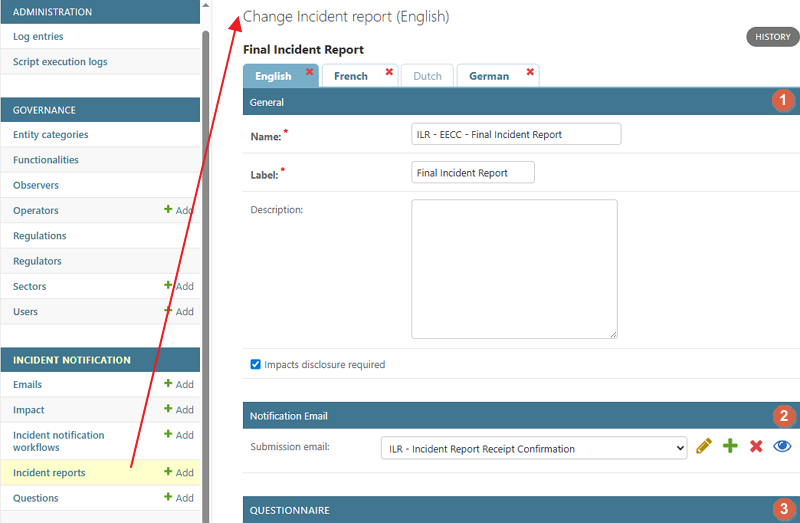

Click the name of a report to view its details. You will then be directed to the Change Incident Report screen. At the top of this screen is the General section, which displays the name, label, and description of the report. The second section is the Notification email, where you can set which email template you want to use for the selected report.
The third section is the Questionnaire, which displays all the questions you have set up for the report. In the first column of the table (Question), you can see the questions themselves. The second column (Mandatory) contains a checkbox; if selected, the question is marked as mandatory, meaning the person completing the questionnaire must answer it.
The Position column determines the order of the questions. When you hover your mouse over this field, up and down arrows appear, making it straightforward to change the position value.
The Category Option column can have different values, such as Regulation, General Notification Information, Nature of the Incident, and Handling of the Incident. You can select the appropriate category from the dropdown menu.
Next to the Category Option column, you will find the Edit, Add, Delete, and View icons, which allow you to modify the selected question directly if needed.
Finally, the Delete column includes a checkbox. If you select this checkbox and click Save at the bottom of the screen, the chosen question will be removed from the list.

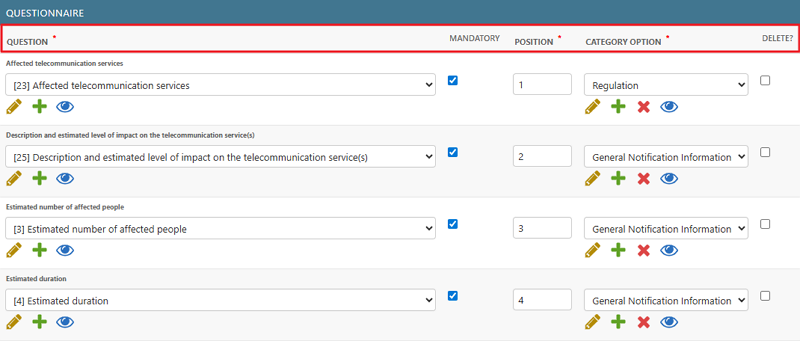

The screenshot below shows the columns described above. Please note that this screenshot is only an example and is truncated; in practice, you will typically create many more than four questions in your reports.
In front of each question title, you can see a number in square brackets. This number represents the reference of the selected question in the database. The next chapter explains the questions in more detail.
First, you need to create your questions under Incident Notification -> Questions. You can then select the questions you need to build the questionnaire for your report.

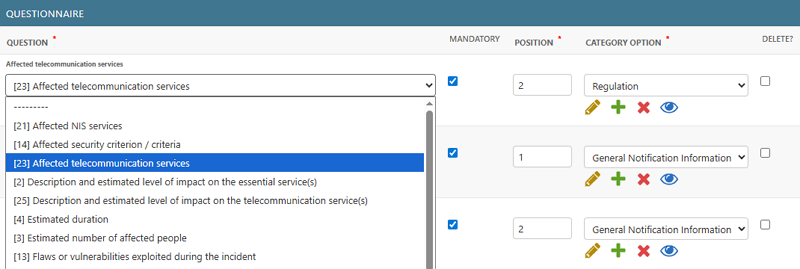

In this example, the first question in the questionnaire is Affected telecommunication services with the reference number [23], but you can select a different question by using the dropdown menu.
Once you have made your changes, click the Save button at the bottom of the screen to save them.
Questions

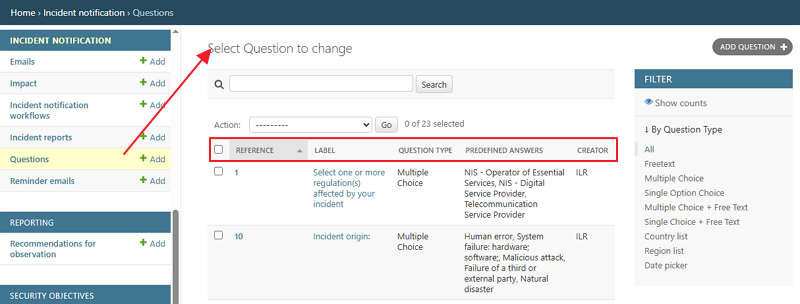

Click the Questions link to go to the Select Question to change screen. On this screen, you can check what kind of questions are defined in your system. The questions you create here can be used in Incident Reports. When creating reports, you can link these questions to build a questionnaire within the report.
The questions are in a table format with the following columns: Reference, Label, Question Type, Predefined answers, and Creator.
Click either the Reference number or the Label of the question to view it. Once you click, you will be directed to the Select Questions to change screen. At the top, you can see the Question Type, the Reference, and the Label.

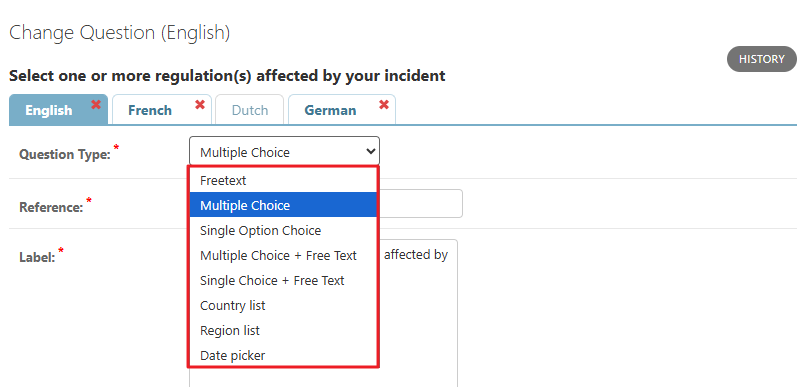

If you click the Question Type dropdown menu, you will see several options, such as Freetext, Multiple Choice, and Single Option Choice.
Beneath that, you can find the Predefined Answers section. Here, you can also use the Position and the Delete options to manage the order of the answers or delete selected answers.
Reminder emails

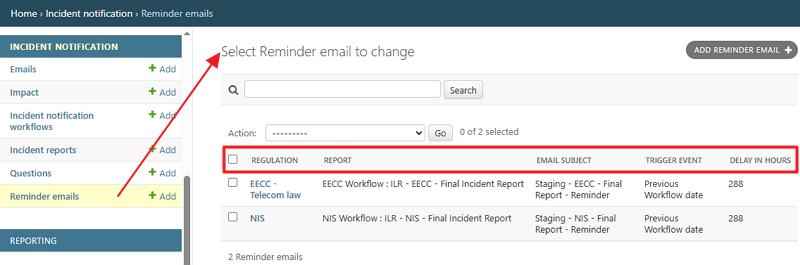

Click the Reminder emails link to go to the Select Reminder email to change screen. On this screen, you can check what kind of reminder emails are defined in your system. You can add reminder emails either by clicking the Add link in the Incident Notification section on the left, or by using the Add reminder email button in the top right-hand corner.
The emails are shown in a table with the following columns: Regulation, Report, Email subject, Trigger event, and Delays in hours.

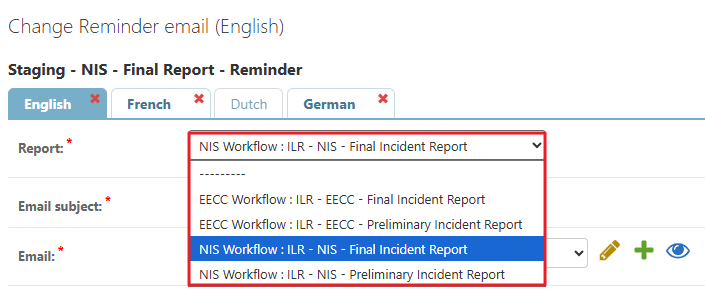

You can link the selected reminder email to a specific report by choosing the appropriate option from the Report dropdown.
You can also use the Email dropdown to choose the appropriate email template and the Trigger event dropdown to choose the trigger event you want to use.
